  • ASDQMS Mitutoyo 342-354-30 IP65 Point Micrometer

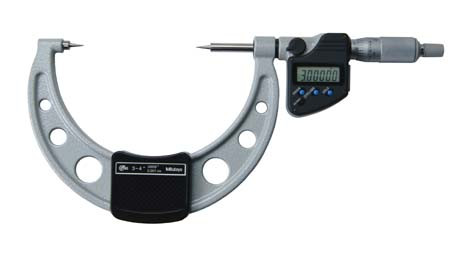

Mitutoyo 342-354-30 IP65 Point Micrometer with Data Output; 3-4" Range

Your Price:
$540.00 (You save $31.00)
Usually ships in 5 days

Product Description

Mitutoyo Point Micrometer; 3-4" Range (76.2 - 101.6 mm)

With SPC data output option

Advanced Systems and Designs - ASDQMS is pleased to offer the Mitutoyo 342-354-30 coolant proof IP65 15 degree Point Micrometer with SPC output. Point micrometers have a pointed spindle and anvil and are used for measuring the web thickness of drills, small grooves and other hard-to-reach dimensions. Available in 15 or 30 degree points. Replaces discontinued 342-354 model.

  • Long battery life (1.2 years under normal use)

  • 3-4" (76.2 - 101.6 mm) Range

  • +/-.00015" Accuracy

  • 30 degree point micrometer also available (342-364-30), Contact us

  • SPC data output

  • Click here for more technical data from Mitutoyo on this Point Micrometer

SPC Data Collection Options:

  • To connect this Mitutoyo point micrometer to the ASDQMS GageMux® or other devices that recognize the Mitutoyo Digimatic format, click these links to see our 250-521 or 250-522 Mitutoyo Digimatic output SPC gage cable.

  • Also click the following link to see the ASDQMS 600-522-KB-USB SmartCable to send data directly to Excel or other spreadsheet programs from this Mitutoyo gage.

  • This 342-354-30 IP65 micrometer can be used in the Mitutoyo U-Wave wireless system – click this link for the correct wireless gage cable. See our “Wireless Gage Interfaces for U-Wave” tab for a complete wireless set-up.

Contact us today!

Advanced Systems and Designs - ASDQMS can offer all ranges and types of Mitutoyo IP65 point micrometers from Mitutoyo stock. Contact us for more information.
