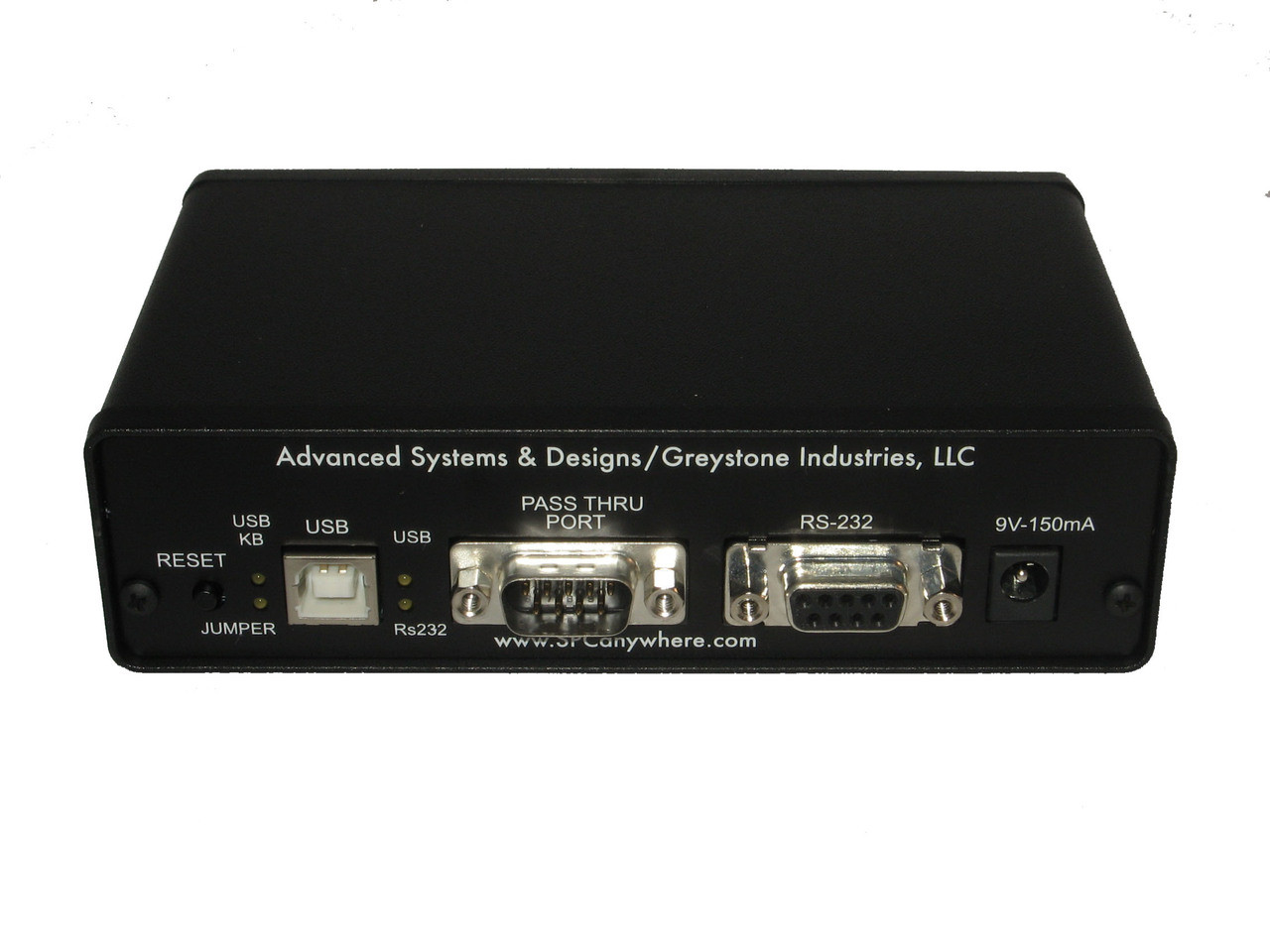

    GageMux® USB 4-Port Universal Gage Interface

    MSRP:
    Now: $545.00
    (You save )
    Write a Review
    SKU:
    500-40-USB-1
    Condition:
    New
    Availability:
    Usually ships in 24 hours
    Width:
    10.00 (in)
    Height:
    7.00 (in)
    Depth:
    3.00 (in)

    Share This Article

    • Overview

    Product Description

    GageMux® USB 4-Port Universal Gage Interface

    Send data to any SPC data collection program

    This GageMux® USB gage interface is compatible with all SPC software programs! The 500-40-USB Advanced Systems & Designs - ASDQMS 4-Port GageMux® USB multiplexer has revolutionized data collection and storage. It allows users to connect hundreds of different types of measuring devices and gages to an automated data collection system such as a PC or hand-held computer into any SPC software data collection package.

    NOTE: Our GageMux USB automatically provide d2 type, seven digit output for all of your high resolution gages!

    This 4-Port GageMux® USB universal gage interface supports four (4) inputs, can daisy-chain 100's of gages, and reads directly from Mitutoyo gages or Digimatic output gage cables such as our FlashCable®. The GageMux® USB gage interface has LED indicators that communicate to the user if a reading is sent correctly to the computer, if a gage is reading incorrectly, and which output mode you have configured (USB or RS232). The GageMux® USB gage interface provides configurable options using rotary switches or commands stored in memory. It has a red LED for each port displaying errors, a RS232 pass thru port and connects 100’s of gages to a RS232 or USB serial port.

    All ASDQMS GageMux® USB gage interfaces have a simple, user friendly setup – your computer automatically installs the USB driver when the GageMux® gage interface is plugged into your computer USB port---just plug and play! If you choose to use the GageMux® as a RS232 9-pin output device, simply change the internal switch settings, connect a serial cable (not included), and the GageMux® will send data to your computer RS232 COM port.  No need for additional drivers or external cable converters.

    If you want to send data directly to a spreadsheet program such as Microsoft Excel or internet explorer type SPC programs, see our 500-40-KB-USB-1 GageMux® USB 4-Port universal gage interface with keyboard option - no complicated software wedge required. We make SPC data collection easy!

    Since its invention, the updated functionalities of the GageMux® USB universal gage interface include faster speed and more gage compatibility. You can now send readings up to 100 times faster than with ordinary serial connections. In addition to the faster speed, the GageMux® USB gage interface can support gages from over 500 different manufacturers. See our large variety FlashCable options and gage cables to connect your specific gage or RS232 device to our 4-Port GageMux® gage interface.

    Features:

    • Provides d2 type, seven digit output for all of your high resolution gages.

    • Lifetime Warranty against manufacturing defects

    Dimensions:

    4" W x 5"D x 2"H

    Power:

    USB Powered (cable included).  With our USB powered GageMux® no special power adaptors are required in other countries! A separate power supply may be required when using only the RS232 output.  Call for more information.

    Gage Input:

    Mitutoyo compatible gages including all Mitutoyo Digimatic output gages, Mahr Federal Maxum Plus, Maxum III, uMaxum, CDI Logic Series, Starrett Wisdom, Chatillon DFIS, Fowler Ultra Logic, Ono Sokki EG-225, and many more! See our large variety FlashCable options and Gage Cables to connect your specific gage or RS232 device to our GageMux.

    Output Specifications:

    USB-RS232 Output: 9600, 8, N, 1.

    Example data output:

    • Full Comma-Delimited Format:  001,   -1.2340, NRM, 01

    • Reading Only Format:  -1.2340<CR><LF>

    • Mitutoyo Mux-10 Format:  01A-001.2340<CR>

    Operating Modes:

    Single Reading, Continuous Output Mode, Host Commands
