ASDQMS SmartCable Keyboard for Mitutoyo Coolant Proof Micrometer IP65

Posted

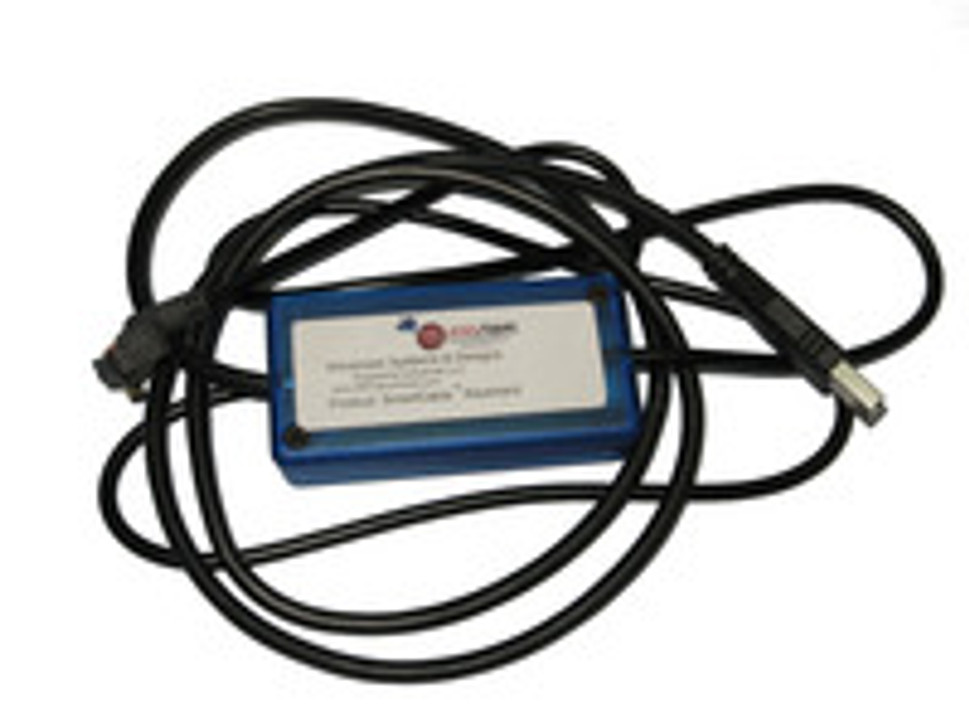

The Advanced Systems & Designs SmartCable™ USB Keyboard, single-gage interface, connects a coolant proof Mitutoyo IP65 micrometer directly to a computer. The SmartCable™ USB connects directly to the gage, no additional cables required. The output of the SmartCable™ USB Keyboard is a standard USB 2.0 keyboard signal. Connecting the SmartCable™ USB Keyboard with its built-in keyboard wedge to a computer will allow the SmartCable™ USB to be identified as a keyboard device that can send data to any Microsoft Windows application - no software wedge required. The SmartCable™ USB Keyboard will make the Mitutoyo IP65 micrometer readings appear as if they were typed in using a standard keyboard - eliminates data collection errors. If you want to collect data into a Microsoft Excel spreadsheet, simply select the cell where you want the data to appear.

Readings can be triggered by any of the following:

  • Pressing the push button on the SmartCable™ USB Keyboard
  • Depressing a connected footswitch (not included)
  • Pressing the data out button on the gage connection

The output mode is selected by adjusting the rotary switch on the SmartCable™ USB Keyboard. To access the rotary switch, simply remove the top cover on the SmartCable by loosening two Phillips screws. There is no need to purchase extra software wedges for your spreadsheet cell fill requirements.

All of our SmartCable™ USB with keyboard output allow you control cell fill direction with a simple adjustment of the internal rotary switch. Options include TAB, CR, up, down, left, right, continuous mode with instant readings or continuous mode with delays of 10 seconds, 15 seconds, 30 seconds and others. These options come as standard features on our SmartCable USB with keyboard output for your Mitutoyo gage.

Contact us (info@spcanywhere.com) if you have a special output request.

No need to worry about long-lead times, we currently stock, and can deliver, all of our direct input SmartCable™ USB for your Mitutoyo gage in less than a week. A detailed operation manual is included with each SmartCable Keyboard. Six foot overall cable length.

Get your Mitutoyo IP65 Micrometer connected today and collect your data directly into Excel or any spreadsheet program. If you have an older micrometer with the 6-pin connector we also have a SmartCable™ USB Keyboard to direct connect for that as well.
